TV Size and Viewing Distance, Measured
DisclosureThis page contains affiliate links. If you buy through them, we may earn a commission at no extra cost to you.
Every television buying guide eventually says “get the biggest one that fits.” That is advice about the wall. The wall is not the constraint — the sofa is, because it is already where it is, and the distance between it and the screen is a number you cannot shop your way out of.
Screen size follows from that distance. Below is the arithmetic that turns the two into each other, and what it looks like drawn into two real rooms.
The one thing a diagonal doesn’t tell you
Televisions are sold by diagonal, and the diagonal is the dimension that matters least. What fills your field of view is the width, and for a 16:9 screen the width is about 87% of the diagonal.
| Diagonal | Screen width | Screen height |
|---|---|---|
| 43 in | 37.5 in | 21.1 in |
| 50 in | 43.6 in | 24.5 in |
| 55 in | 47.9 in | 27.0 in |
| 65 in | 56.7 in | 31.9 in |
| 75 in | 65.4 in | 36.8 in |
| 85 in | 74.1 in | 41.7 in |
Two things fall out of this table before we get to distance. A 65 in TV is not much taller than a 55 in one — three inches — so the “will it fit the console” question is almost always about width. And an 85 in screen is 74 in wide, which is wider than most sofas are long.
Distance, from the angle
The standard way to size a screen is the horizontal angle it subtends from where you sit. Two reference points are in general use: 30°, the SMPTE recommendation, is the conservative one; 40°, the THX maximum, is about as immersive as most people want before they start moving their eyes to follow the picture.
Run them backwards and each screen width gives a distance range:
| Diagonal | At 40° (closest) | At 30° (comfortable) |
|---|---|---|
| 43 in | 4 ft 4 in | 5 ft 10 in |
| 50 in | 5 ft 0 in | 6 ft 9 in |
| 55 in | 5 ft 6 in | 7 ft 6 in |
| 65 in | 6 ft 6 in | 8 ft 10 in |
| 75 in | 7 ft 6 in | 10 ft 2 in |
| 85 in | 8 ft 6 in | 11 ft 6 in |
Read it in whichever direction you need. If the sofa is nine feet from the wall, a 65 in screen is the comfortable choice and a 75 in one is still inside the THX limit. If it is six feet, the answer is 50 to 55 in, and an 85 in television will feel like the front row of a cinema for the whole of its life in that room.
This is also the answer to “do I need 4K.” At these angles you are close enough that a 4K panel’s extra pixels resolve; the question that actually matters is the one above — angle — not the panel.
Where you actually sit
Here is the mistake that undoes all of the above: people measure from the wall behind the sofa.
Your eyes are not at the wall. They are roughly 24 in in front of it, once you account for the sofa’s back cushion, the seat depth you actually use, and the fact that nobody sits bolt upright. On a deep lounge sofa it is more. Seat depth is the number that decides this, and it varies by six inches or more between sofas.
Twenty-four inches sounds like a detail. At a 9 ft measurement it moves you a full screen size.

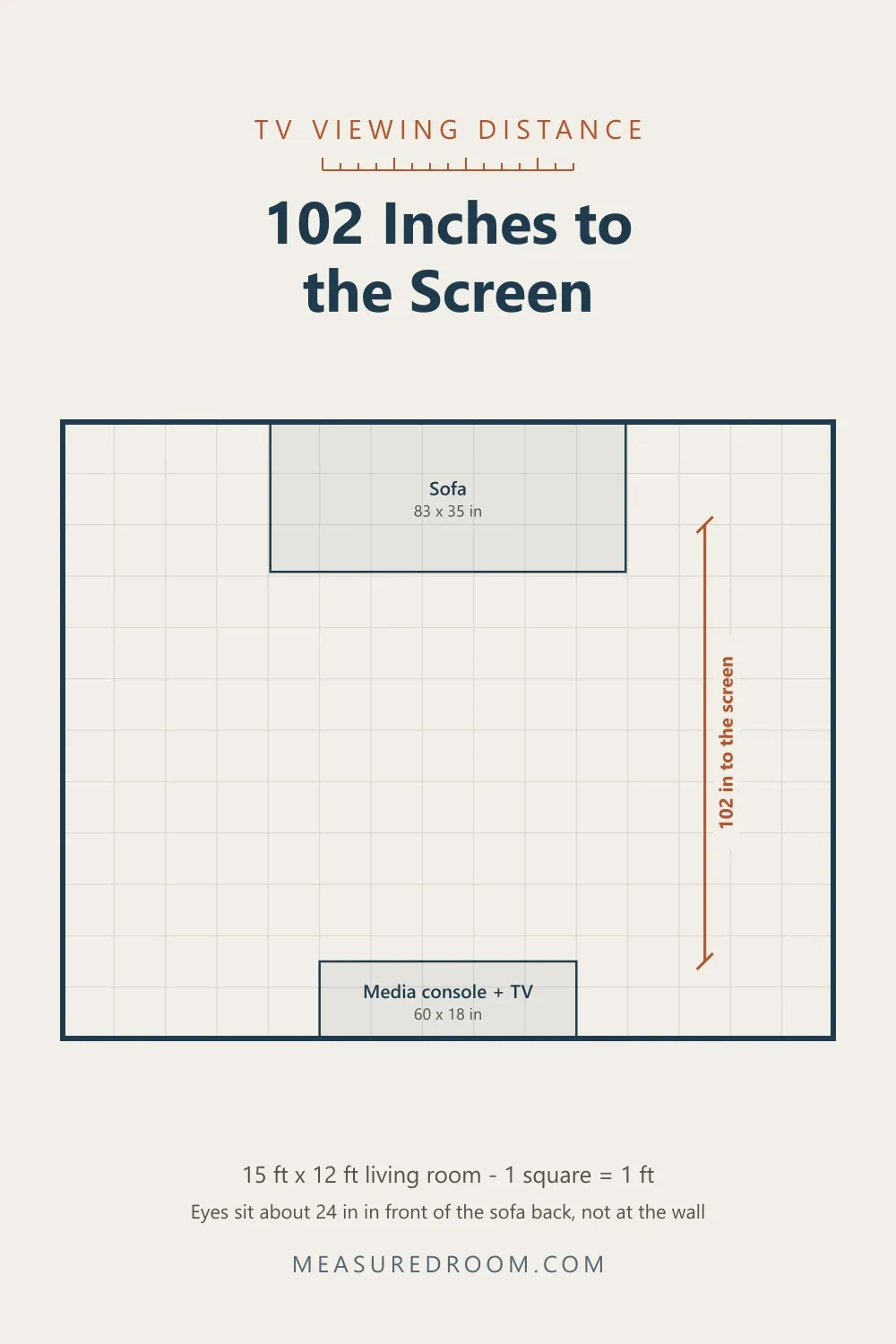

Two rooms, drawn

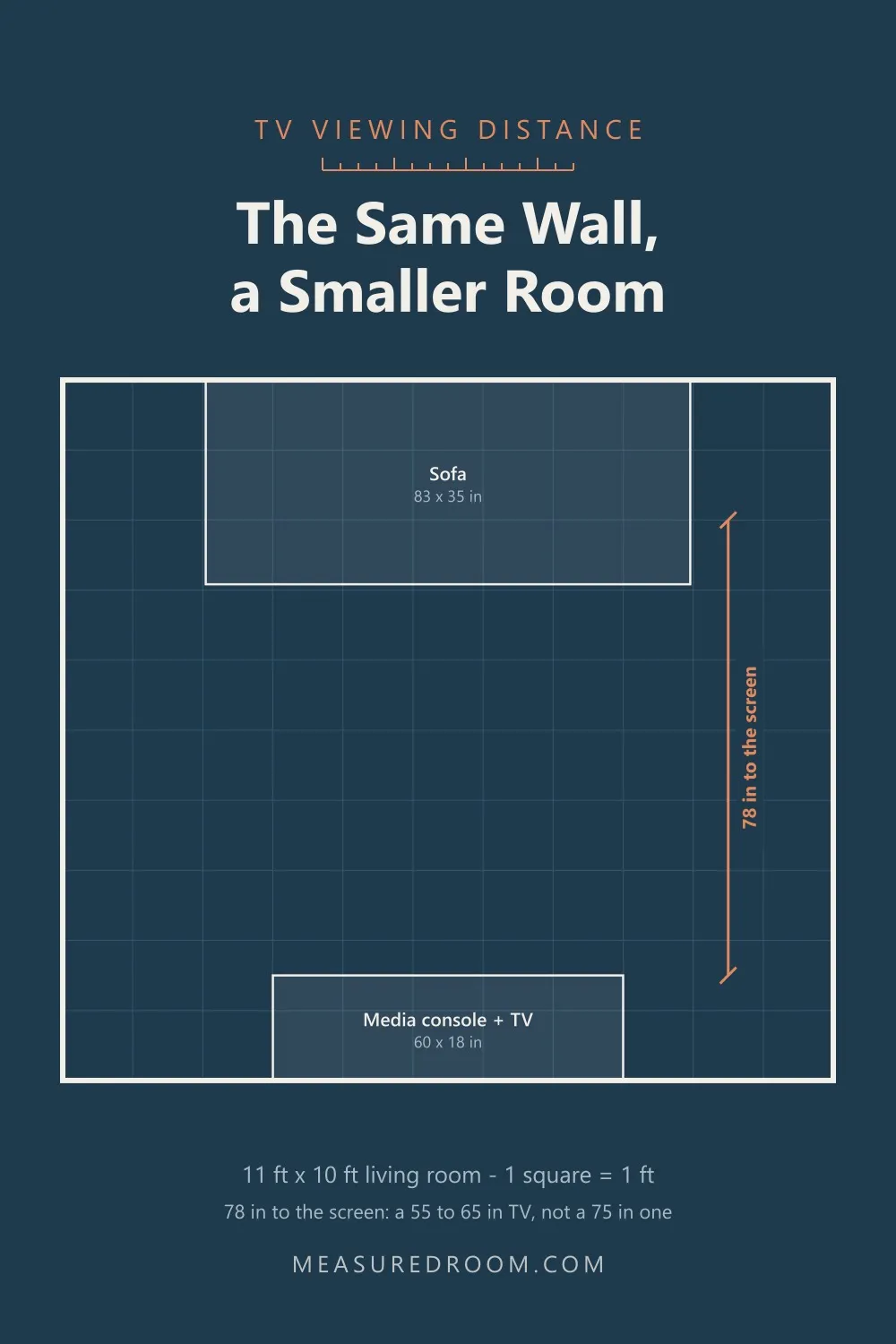

The same sofa and the same media console, in the 15 ft × 12 ft living room used across this site and in an 11 ft × 10 ft one. The TV wall is the short wall in both.
| 15 × 12 ft room | 11 × 10 ft room | |
|---|---|---|
| Wall to wall, sofa side to TV side | 144 in | 120 in |
| Console depth | 18 in | 18 in |
| Eyes, in front of the sofa back | 24 in | 24 in |
| Distance to the screen | 102 in | 78 in |
| Comfortable size (30°) | 65 in | 50 in |
| Maximum size (40°) | 75–85 in | 65 in |
Two feet of room is one and a half screen sizes. That is the entire reason the same television looks right in a friend’s living room and wrong in yours.
Height, and the other mistake
The center of the screen belongs at seated eye height, which for a sofa with a 17–19 in seat is about 42 in off the floor. A 24 in console with a 65 in TV on it puts the center at roughly 40 in — close enough.
Mounting above a fireplace puts it at 60 in or higher, which is why every room with that arrangement has someone in it tilting their head back. If the fireplace is the only wall available, tilt the mount down and accept that the geometry is a compromise, not a solution.
Before you buy
Measure from the front of the console to the front of the sofa, then add 24 in for where your eyes actually end up. Take that number to the distance table and read off two sizes: the comfortable one and the maximum one. Buy in between.
Then check the console: screen width is 87% of the diagonal, plus the feet, which on many sets sit near the outer edges. Burrow lists media console length and depth on the product page, which is what the width figure has to clear — and if the console is going where a coffee table wanted to be, the 18-inch gap is the other half of that calculation.
